Zems iekrāvējs

Ozgul LW4 EU FIX

= Further options and accessories =

- Electronic braking system (EBS)
- Lifting axis
- Spare wheel

= Notes =
Kodowkyc Tjpfx Aa Aodw

TECHNICAL SPECIFICATIONS

MEASURES & DIMENSIONS
-Gross Vehicle Weight (kg): 70,000
-Loading Platform Length (mm) : 9,000
-Weight of Axle Group (kg): 48,000
-Total Lenght (mm): 13,550
-Kingpin Capacity (kg) :22,000
-Total Width (mm): 2,550
-Curb Weight (kg): 13,000
-Loading Platform Height (mm): 920
-Pay Load (kg): 57,000
-Height of 5th Wheel (mm) : 1,310

CONSTRUCTIONS
-Base chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure): Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting: 1st axle automatic 4th axle manual lifting
-Suspension (Type): Air Suspension
-Steering Axles :-
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires: 16+1 units, 245 / 70 R 17.5
-Rims: 16+1 units, 6.75 x 17.5 steel rims
-Landing Gear: Mechanically operated by one side, two speed

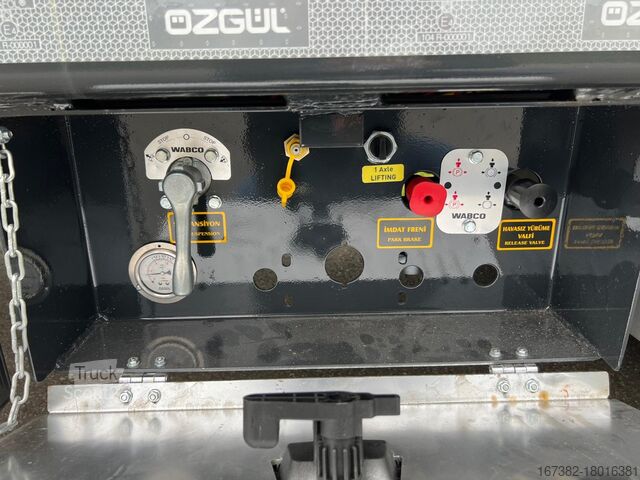

-Brake System: Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axles with 4 units service brake chambers.

Electric system
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights

Floor
-Above tires and edges of platform are covered checkered sheet and hard wood
-The middle surface is covered by flat sheet steel

Rear loading ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind neck.

Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint

TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized side extensions brackets 250 mm + 250 mm
-2 x Side Protections, aluminum
-1 x tool box.
-1 x spare wheel carrier with 1 tire (on the gooseneck)
-2 x manual support legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x side extension reflectors
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumpers

= Further information =

Curb weight: 13,000 kg
CE marking: yes
