Volvo FMX 500 10x4 Bronto Skylift S78XDT

- Work lights, rear
- Work lights, front
- Heated mirrors
- DAB radio
- Differential lock
- Enclosed cabin
- Heater
- Intarder
- Air conditioning
- Air-suspended seats
- Radio/CD
- Power take-off (PTO)

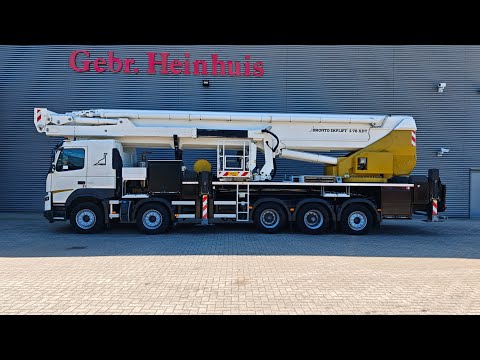

Volvo FMX 500 10x4.

Year of manufacture: 2018.
Mileage: 62,760 km.
Automatic transmission.
Weight: 43,020 kg.
Max. weight: 50,000 kg.
Axle load:
1: 9,000 kg.
2: 9,000 kg.
3: 11,500 kg.
4: 11,500 kg.
5: 9,000 kg.
Multi-function steering wheel.
Air conditioning.
Auxiliary heater.
Retarder / Intarder.
Electric windows and mirror adjustment.
Camera.
Audio display with radio and navigation.
Sleeper cab (1 bed).
Wheelbase:
1-2: 1,950 mm.
1-3: 5,600 mm.
1-4: 6,900 mm.
1-5: 8,200 mm.
Air suspension, rear.
External planetary axles (hub reduction).
1st, 2nd and 5th axles steerable.
Euro 6 / AdBlue.
Tires:
1: 385/55R22.5, 70%.
2: 385/55R22.5, 70%.
3: 315/70R22.5, 70%.
4: 315/70R22.5, 70%.
5: 385/55R22.5, 70%.
Bronto Skylift S78XDT.
Year of manufacture: 2018.
Operating hours: 9,681.
Rcjdpezq Ac Tofx Ak Dsd
Operating hours (under load/RPM): 2,138.
Max. basket load capacity: 600 kg / 7 people + 40 kg.
Max. wind speed: 12.5 m/s.
Max. lateral force: 400 N.
Max. permissible inclination: 0.3 degrees.
Max. working pressure: 200 bar. 4-point outriggers.
Extended and rotatable work basket.
Power and compressed air connections in the work basket.
Maximum working height: 78 meters.
Maximum reach: 35 meters.

Dimensions:
L: 13,200 mm.
W: 2,550 mm.
H: 4,000 mm.

ID No.: 633.

The General Terms and Conditions of Heinhuis apply to all advertisements, offers and quotations from Heinhuis, as well as to all contracts concluded by Heinhuis and the negotiations preceding them. By any form of contact, you accept the validity of the General Terms and Conditions of Heinhuis and declare that you have taken note of these General Terms and Conditions. Our prices are net export prices.

Drivetrain
Drive: Wheel

Axle configuration
Front axle 1: Tire size: 385/55R22.5; Max. axle load: 9000 kg; Steerable; Tire tread left: 70%; Tire tread right: 70%; Suspension: Leaf spring suspension
Front axle 2: Tire size: 385/55R22.5; Max. axle load: 9000 kg; Steerable; Tire tread left: 70%; Tire tread right: 70%; Suspension: Leaf spring suspension
Rear axle 1: Tire size: 315/70R22.5; Double tires; Max. axle load: 11500 kg; Tire tread left inside: 70%; Tire tread left outside: 70%; Tire tread right inside: 70%; Tire tread right outside: 70%; Reduction: External planetary axles; Suspension: Air suspension
Rear axle 2: Tire size: 315/70R22.5; Double tires; Max. axle load: 11500 kg; Tire tread left inside: 70%; Tire tread left outside: 70%; Tire tread right inside: 70%; Tire tread right outside: 70%; Reduction: External planetary axles; Suspension: Air suspension
Rear axle 3: Tire size: 385/55R22.5; Max. axle load: 8999 kg; Steerable; Tire tread left: 70%; Tire tread right: 70%; Suspension: Air suspension

Weights
Unladen weight: 43,020 kg
Payload: 6,980 kg
GVW: 50,000 kg

Functional
Lifting capacity: 600 kg
Working height: 7,800 cm
CE marking: yes
