Riteņu iekrāvējs

Maximum 0320119

Please submit product inquiries, order status requests, and requests for on-site pickup via email!
info@schuetze-handel.de

Telephone support – callback service after scheduling an appointment via email!
-----

Maximum 0320119
1T Yard/Wheel Loader
41 hp Euro 5 diesel engine (4-stroke)
Full cab with heating, radio, reversing camera, fire extinguisher...
Color can be selected
Wide tires: 31x15.5R 15
Total height 272cm
with 4-in-1 bucket

Technical data:
Rated load 1000 kg
Total weight 2200 kg
Rated bucket capacity 0.4 m3
Max. pulling force 30 kN
Max. breakout force 38 kN
Max. climbing ability 28°
Dumping height 2000 mm
Dumping reach 700 mm
Lifting time 4.5 s
Total cycle time 9.0 s
Dimensions (L * W * H) 4470 * 1570 * 2450 mm
Turning radius 3640 mm
Inline, water-cooled four-stroke engine
Iedpoq T Srpjfx Ad Sobc
Rated power 41 hp
Rated speed 2200 rpm
Transmission mode HST
Automatic transmission, 2 forward gears, 2 reverse gears
Max. speed 15 km/h
Drive axle, front axle model 130 axle
Tread width 1270 mm
Wheelbase 2000 mm
Drive mode 4-wheel drive
Hydraulic system, system operating pressure 16 MPa
Braking system, service brake, foot-operated drum brake
Parking brake, hand-operated, flexible shaft-controlled disc brake
Tire type, specification 31 * 15.50-15NHS

Rear lights
Front LED headlights
Top front and rear lights
Turn signals
Top warning light
Windshield wiper
Display: water temperature, oil pressure, engine temperature, ammeter, battery
Hour meter
USB charger 12V
Bluetooth
Radio-MP3
Mirrors
Heater
Horn
Ventilation
Joystick
Fire extinguisher
3 hydraulic circuits
220 volt preheater / diesel heater
12 volt cigarette lighter
Reversing camera, 7" color...
Lockable cabin
Adjustable seats + steering

Powerful battery 24V/60 Ah (Size: 26x17x20cm)
CE operating permit

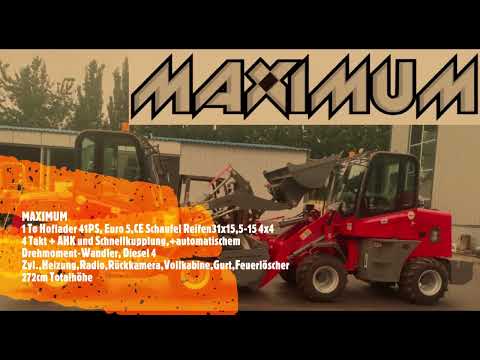

Images show vehicles as examples. Deviations from the images are possible.
If you have any questions, we will be happy to advise you.
