Dzīvojamais konteiners

Decker Containerbau Kombicontainer, 20 ft halb Büro/ Lager

Combined container on hooklift frame (ABR)
Half office / half storage
Available at short notice from stock 94377 Steinach

- Optional with protective grating, price on request

Internal room height: 2,225 mm
External dimensions (L/W/H): 6,058 x 2,438 x 2,520 mm
Hooklift frame: 180 mm, RAL 7016 anthracite grey
Interchangeable plastic rollers, Crossbeam 2300 mm

- Panel construction, panel width 1,145 mm
- Base frame made of 3 mm steel profile
ISO container corners welded, 8 mm as per ISO standard
- Corner posts made of cold-rolled steel profile, minimum 3 mm thick
Nlodjxy E S Aepfx Ab Asi
Interior insulated with mineral wool
- Floor: 100 mm mineral wool, PE vapor barrier 0.2 mm, cement-bonded chipboard D-18 mm,
1.5 mm PVC flooring B1, Q1, R9, U-value: 0.34 W/m²K
Floor load capacity: 2.5 kN/m²
- Roof frame: 3 mm cold-formed welded steel profile
- Roof: 0.55 mm galvanized flat sheet, 120 mm mineral wool,
U-value: 0.36 W/m²K, PE vapor barrier 0.2 mm
Drainage via flexible outlets in corner posts
Coated white chipboard, 10 mm
Roof load capacity: 1.5 kN/m² (please consider local snow load)
- External walls: 50 mm PU panels,
Steel/steel external micro-lined / internal smooth, U-value: 0.42 W/m²K
- Paintwork: Steel parts such as base and roof frame,
stanchions and upper/lower frames RAL 7016 anthracite grey
External panels RAL 7016 anthracite grey
Internal panels RAL 9002 grey white

WITHOUT forklift pockets

STORAGE AREA
- Floor: 120 mm mineral wool, PE vapor barrier 0.2 mm,
cement-bonded chipboard D-18 mm,
- Steel chequer plate 3/4 mm, painted RAL 7016 anthracite grey

STANDARD EQUIPMENT
- 1 x steel sheet door RAL 7016 anthracite grey, insulated,
Clear dimension approx. W/H 820 x 2,000 mm,
Complete with lever handle set and cylinder lock with 3 keys
- 1 x plastic turn/tilt window RAL 7016, single sash with exterior roller shutter,
W/H 880 x 1,345 mm, Uw-value 1.6 W/m²K
- 1 x double-leaf steel sheet door RAL 7016 anthracite grey, insulated,
Clear width W/H 1,960 x 1,960 mm, complete with lever handle set
and cylinder lock with 3 keys

ELECTRICAL INSTALLATION
- According to applicable ÖVE/VDE standards
- 1 x supply and return line with CEE connection, 380 V / 32A / 5-pole
Recessed in the upper crossbeam
- 1 x distribution box with RCD and circuit breakers 13A / 16A
- 2 x LED light strips, each 2.5 m, tunable white, office area
- 2 x LED light strips, each 2.5 m, tunable white, storage area
- 2 x light switches
- 2 x double sockets
- 2 x single sockets

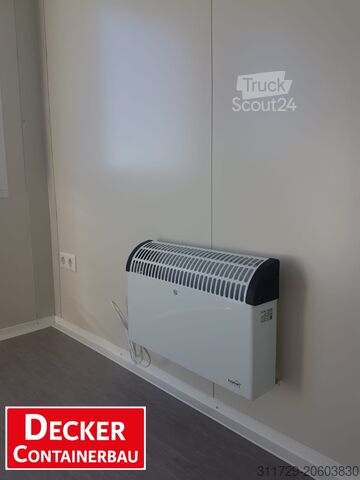

- 1 x wall convector 2 kW
- 2 x grounding conductors
All cables installed flush-mounted

Available from branch 94377 Steinach
Subject to prior sale
Payment terms: 100% prepayment before loading.
Goods remain our property until full payment has been received.
Our General Terms and Conditions apply.
Offer is subject to confirmation without guarantee or warranty.

We will gladly provide you with a non-binding quote.

You can find our full product range at decker-containerbau.c
